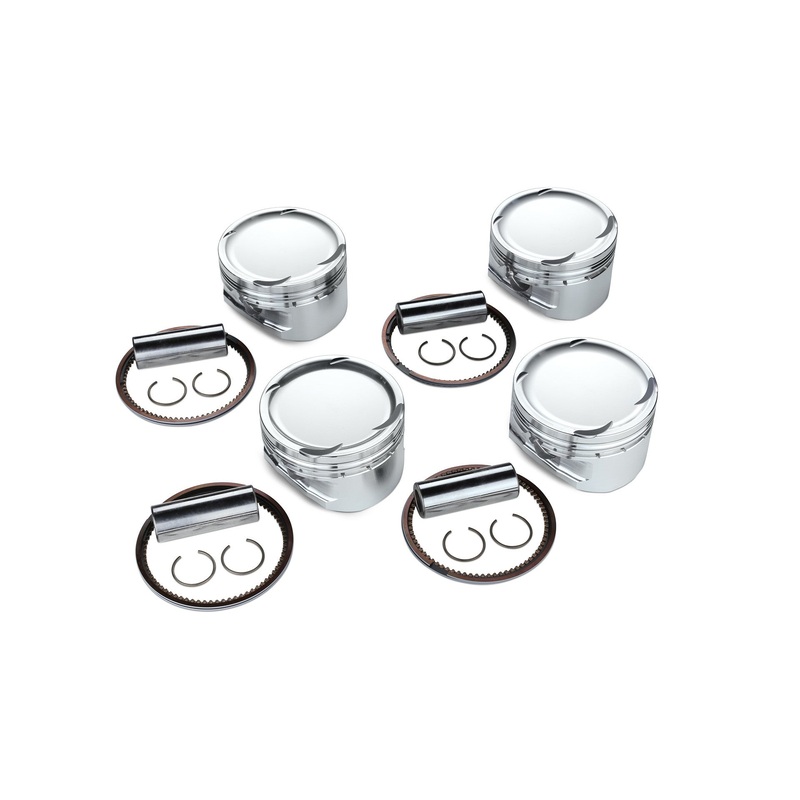

Forged Piston Set for 2008-2015 Mitsubishi Evo X by Tomei

Upgrade your stock internals with this forged piston set by Tomei to push/handle significantly more power.

Features

• Bore: 87mm
• Pin Diameter: 23mm
• Pin Length: 62mm
• Circlip Inner Diameter: 23mm
• Valve Recess: WITH
• Compression Height: 27.4mm
• Piston Volume: -12.5cc
• Piston Weight: 316.5g
• Pin Weight: 133g
• Total Weight: 449.5g
• Top Ring: 1.20mm x 3.05mm
• Second Ring: 1.20mm x 3.90mm
• Oil Ring: 2.50mm x 2.95mm
• Piston Material: A4032

Applications

• 2008-2015 Mitsubishi Evo X

What’s In The Box?

• 1 – Piston Kit

References

• Manual
